2021 Power Wagon 75th Anniversary Edition

[tobyw]

Welp... if there is one constant around here, it's change in the Wilcox fleet While I cannot fault the outgoing F-150 for much, it sadly just sort of left me feeling empty inside. It just wasn't one of those rigs that makes you smile when you look back at it after walking away from it. Perfectly suitable for all manner of activities, if not a touch pretentious in it's King Ranch trim package, but I just didn't love it enough. Now, having ownt one or three of just about everything on the road at this point in my career, the list of what's next was honestly pretty slim. I have my requirements, minimums if you will, as well as a list of wants that probably fall outside the norm. Luckily, my good friends at Dodge have just the thing; the Power Wagon

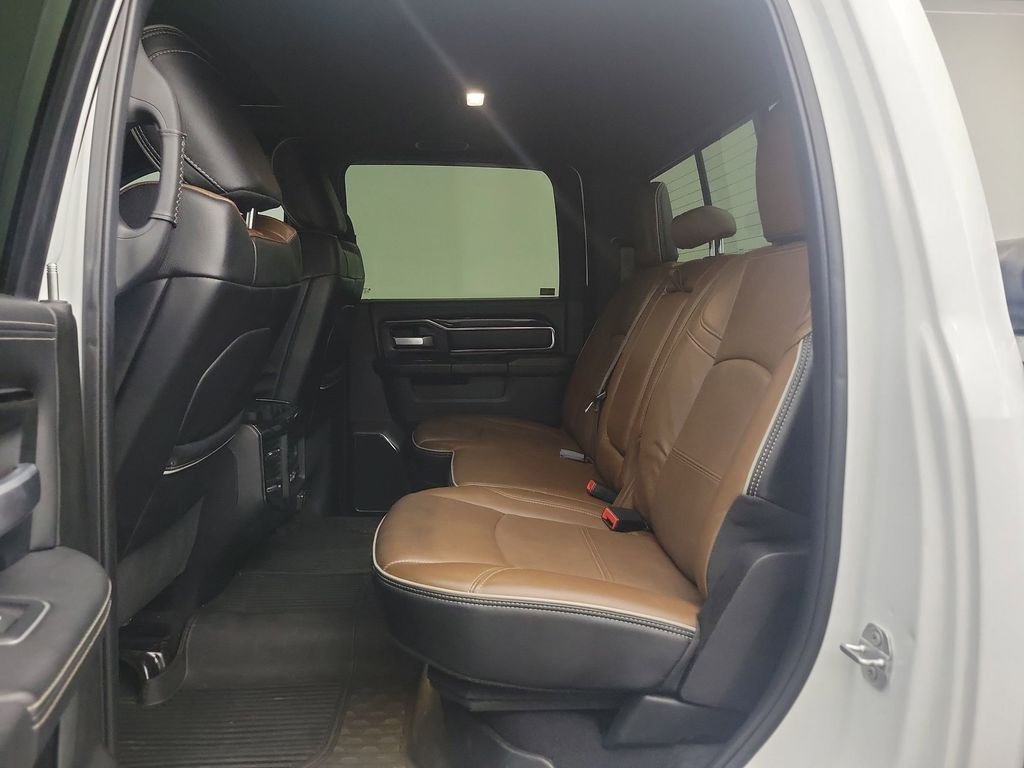

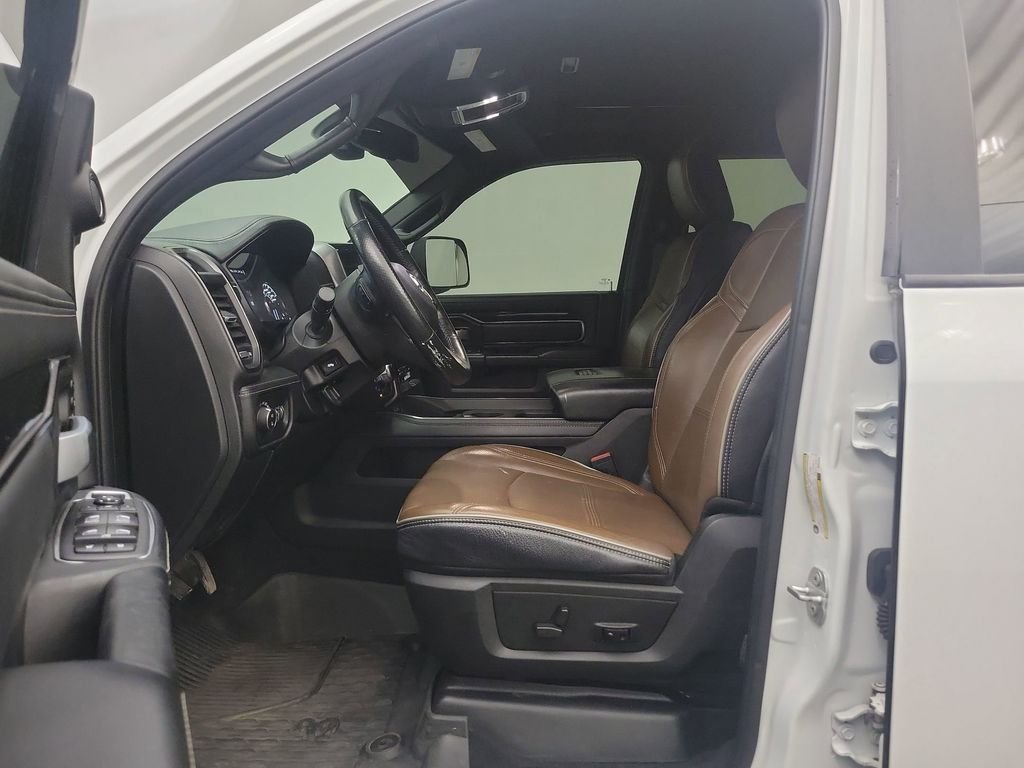

This one in particular is a 2021 with the 75th Anniversary Edition package, which tacked almost $12k onto the original MSRP and netted things like unique "mountain brown" heated and cooled leather seats, 12" Nav screen, full-length center console, LED projector headlights, interior accent lighting, and a 17-speaker Harman Kardon sound system, among others. Essentially, it's a Power Wagon with Ram's Limited trim level interior.




What makes the Power Wagon platform so cool is the factory 2" suspension lift, front and rear locking differentials, 4.10:1 axle ratio, electronic disconnecting front sway bar, and Warn Zeon 12k winch with synthetic rope. It's essentially a full-size Rubicon, and that is difficult not to smile about

The plans for this turd are somewhat in flux, but first up will be some some routine maintenance to set a baseline along with a Blackstone oil analysis just for some peace of mind. Oh, and those side step things hafta go. Now.

[tobyw]

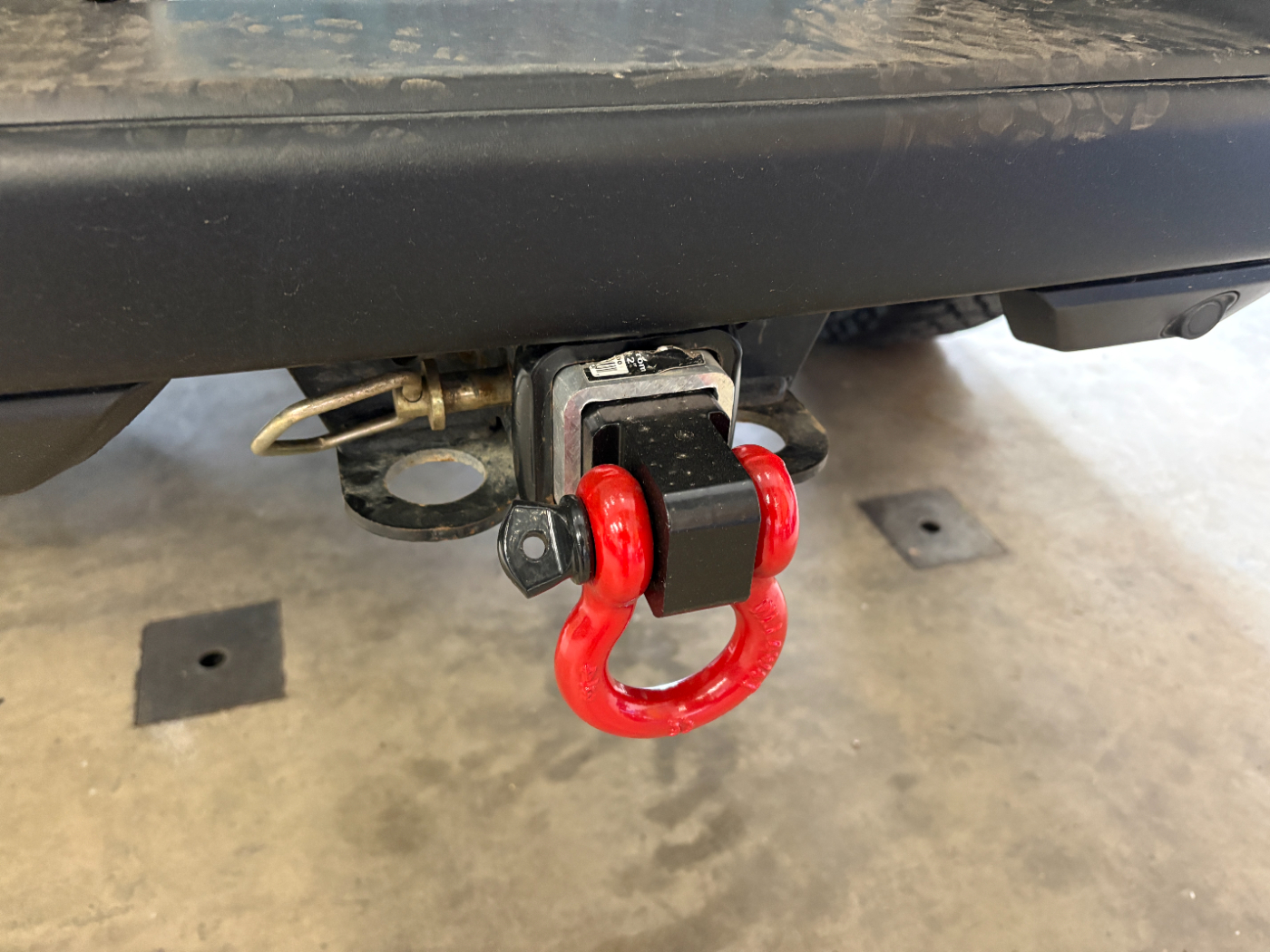

As the PW is the perfect candidate for the BDR-style of travel we have gravitated toward, first up was recovery because, well, because I seem to require recovery. Often

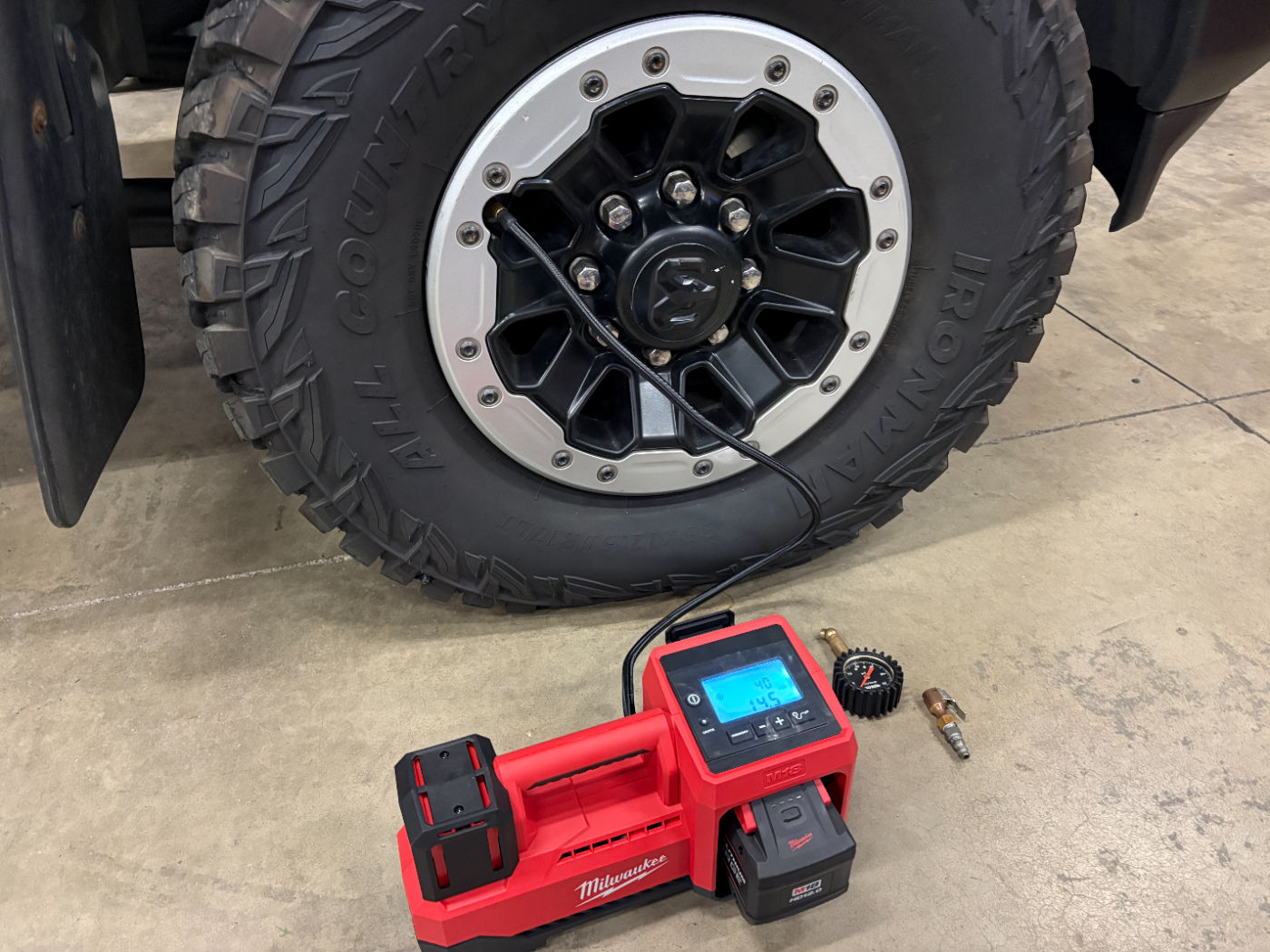

We all know that airing down is a key part of the equation when it comes to comfort and traction at Starbucks. I've run the gamut with OBA options over the years, but this time I took a markedly different approach: battery power. Now, I'll be the first to admit this idea is wrought with potential failure(s), but I've never been accused of being the sharpest knife in the drawer. Given the simple facts that any tire change involves 8 lug nuts and I'm chronically lazy, I will be packing my Milwaukee M18 impact on the trails. As such, I'm already tasked with packing the requisite batteries and ensuring they are topped off, so a compatible compressor seemed like a no-brainer in terms of both cost and ease of "install".


My first test going from 14psi back up to 40psi resulted in just about 4-1/2 minutes with the compressor humming away. Definitely not the quickest option, but I can live with it.

Now to address those side steps

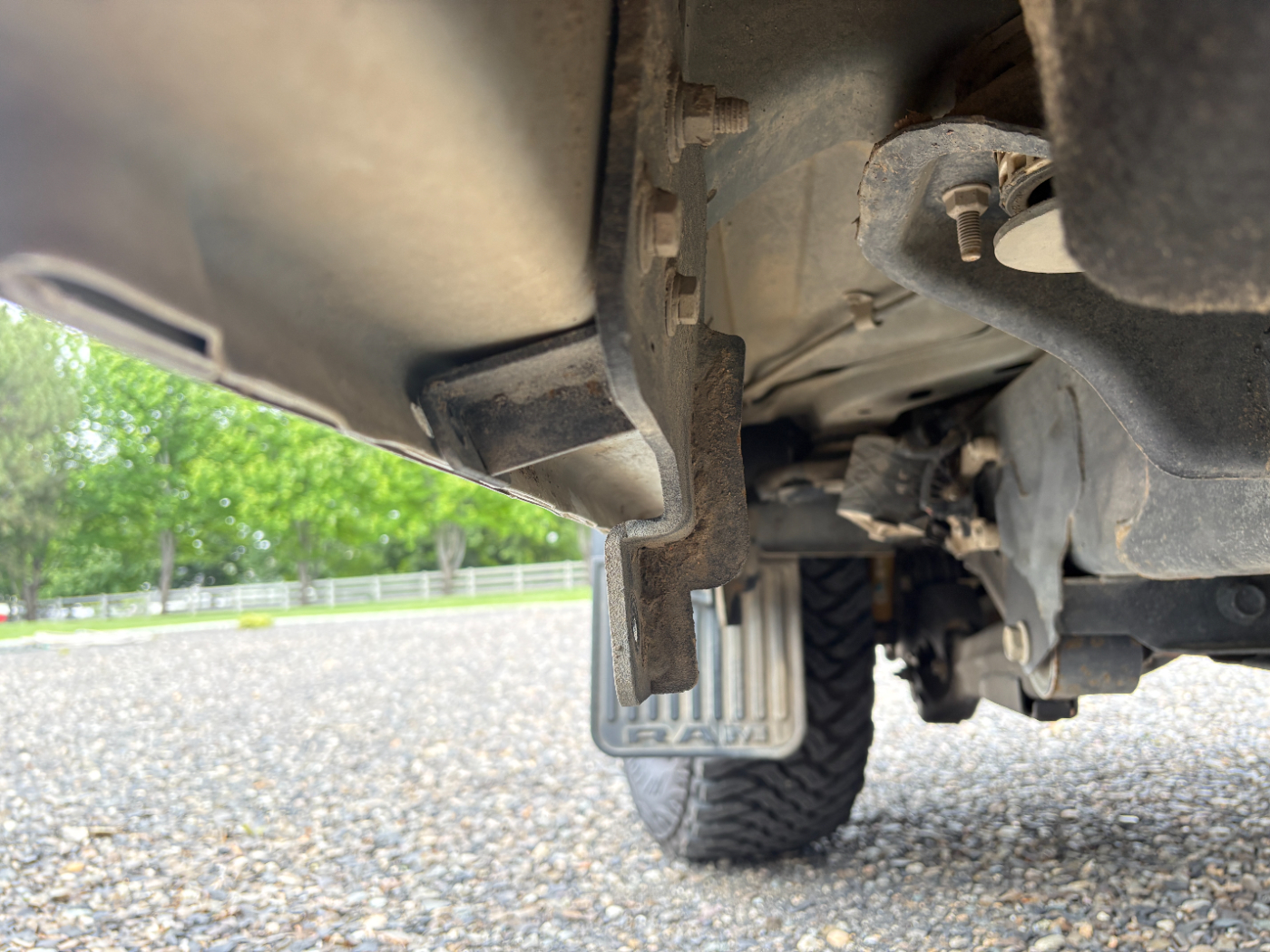

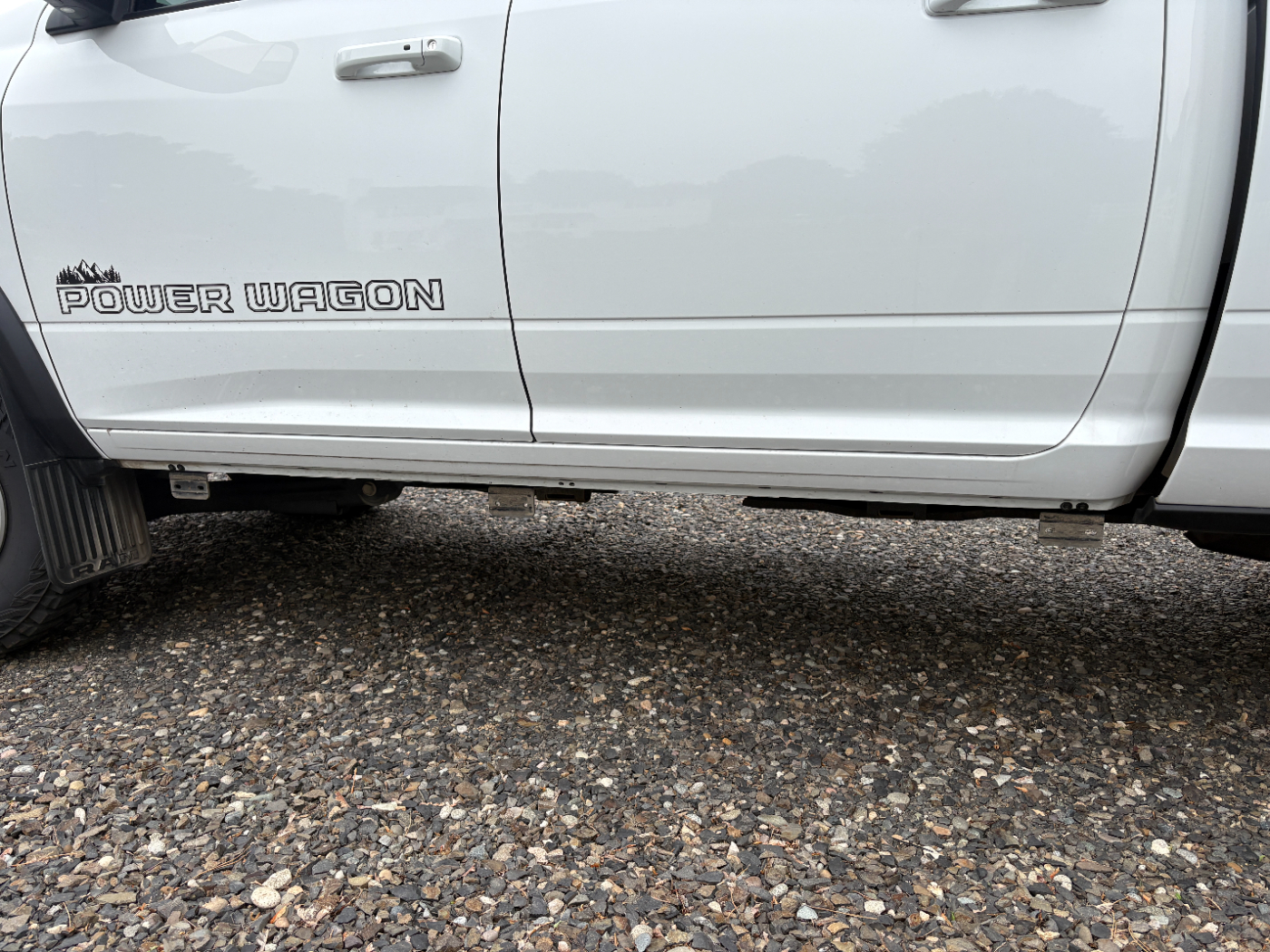

Better already The reality is, this thing isn't a rock crawler so for my use case, frame-mounted rock sliders are overkill. I need a step surface for the CFO to get in and out a little easier, and to keep shopping carts at bay at Costco. As it turns out, the brackets left behind from the old steps are actually pretty nice pieces, and made a great foundation to build off of:

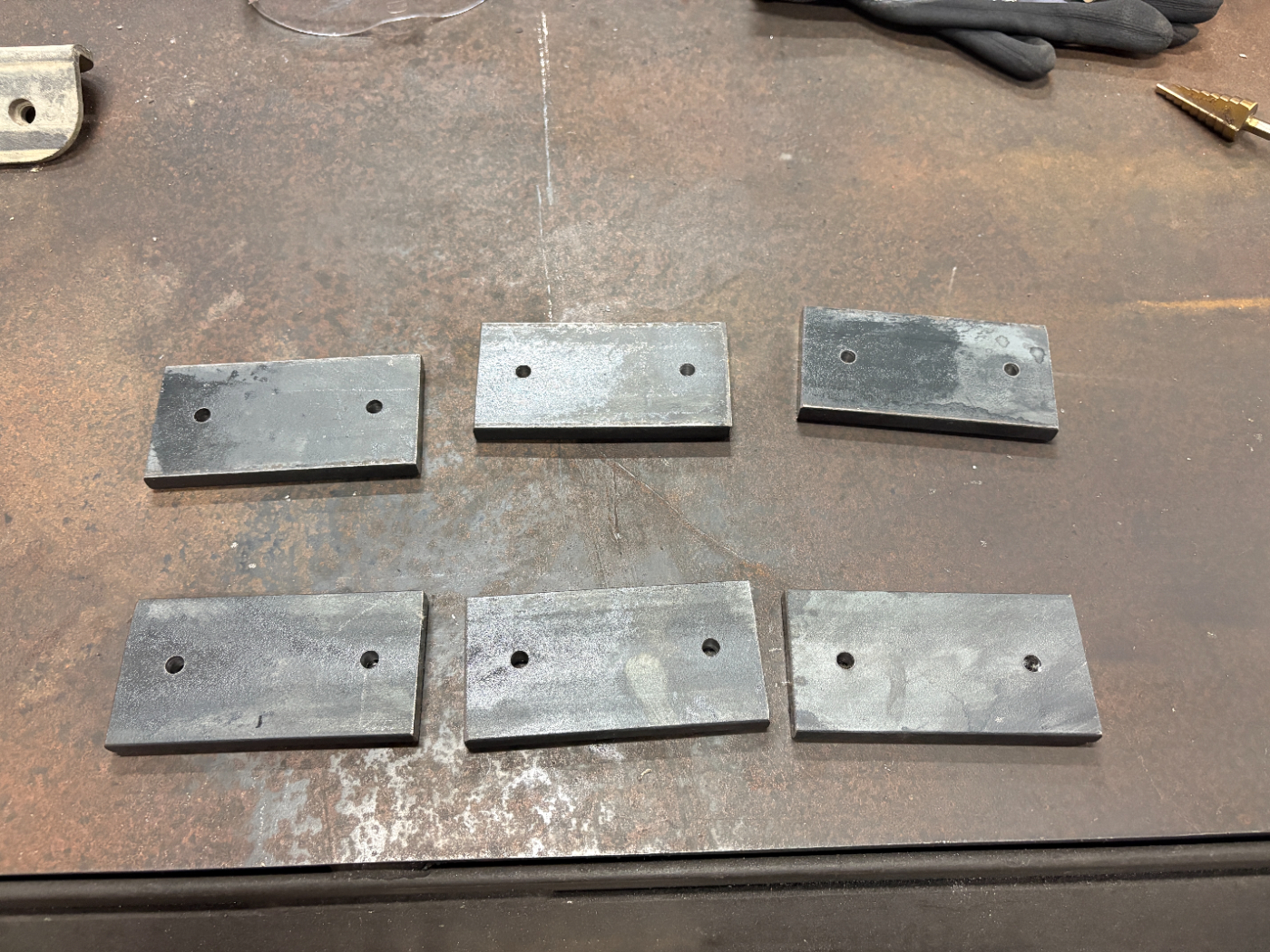

The first step (see what I did there ) was to make some 3/8" thick backing plates with a hole pattern to match the mounting brackets:

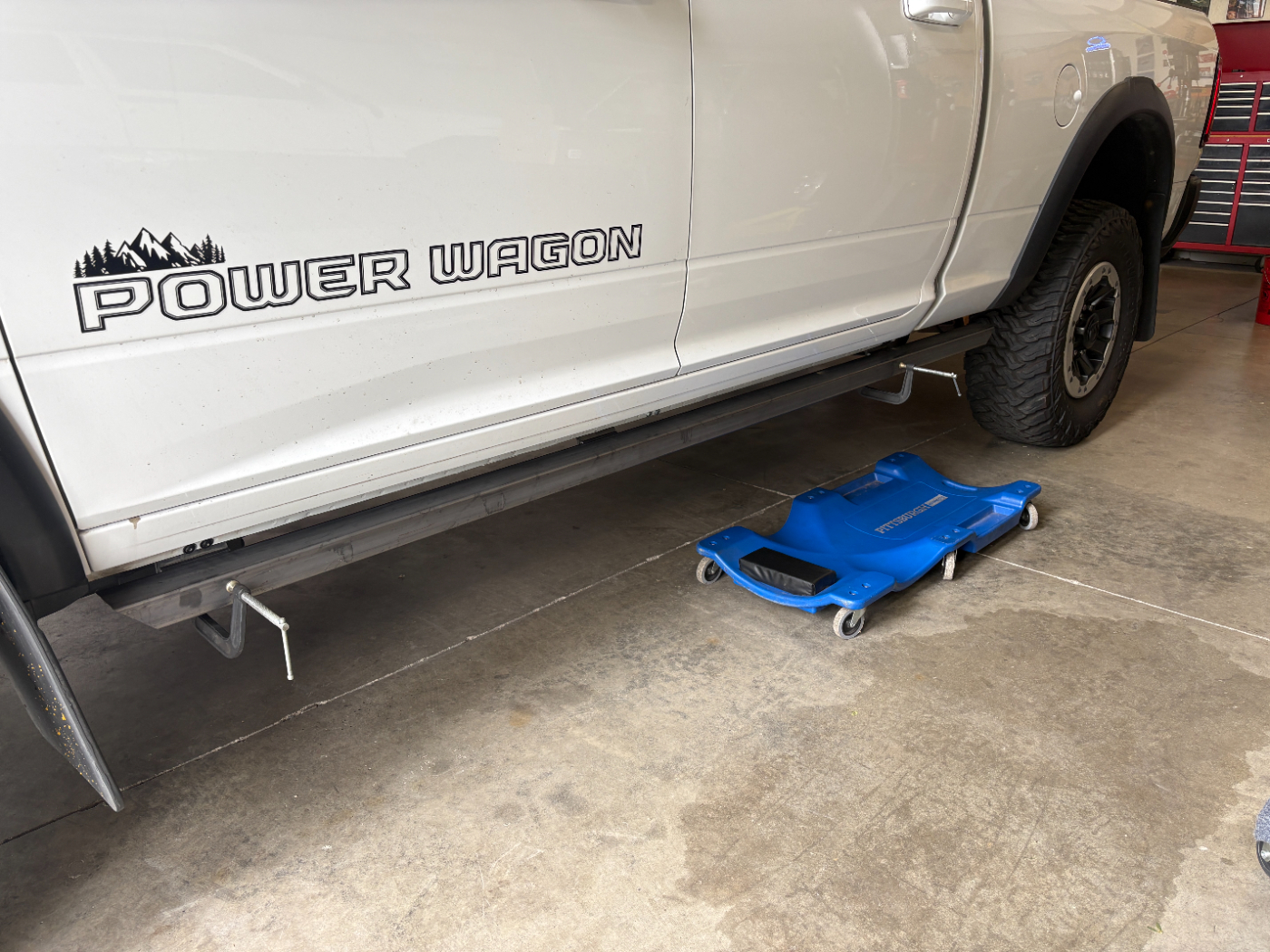

These are important because the backbone of my steps is only 1/8" wall box tube, and I wanted to make sure there was plenty of meat to drill and tap them for mounting. A quick mockup:


To ensure the aforementioned shopping carts don't get into the bulbous door skins of the PW, I enlisted the Tewb Kinker 5000. Another quick mockup:

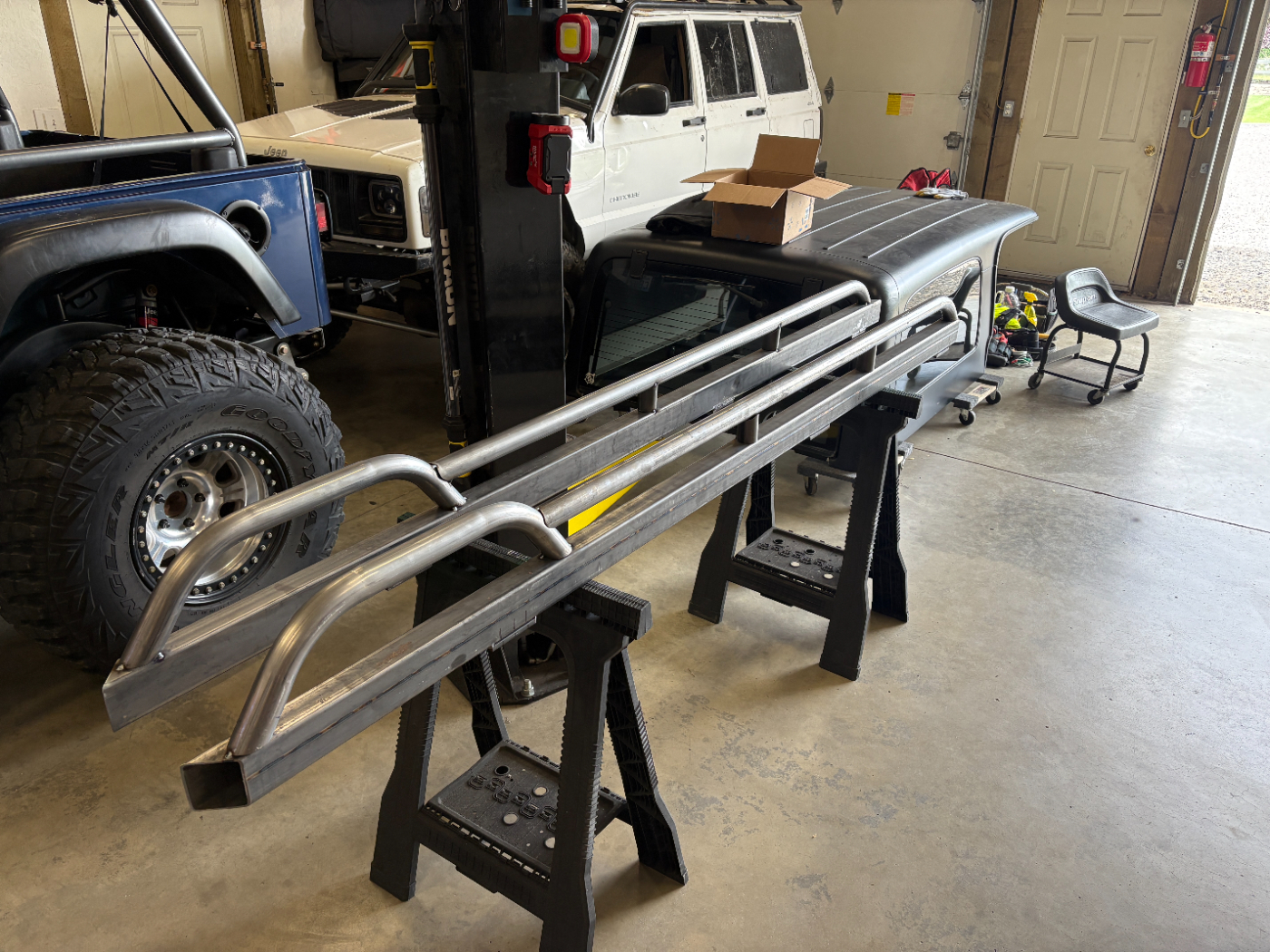

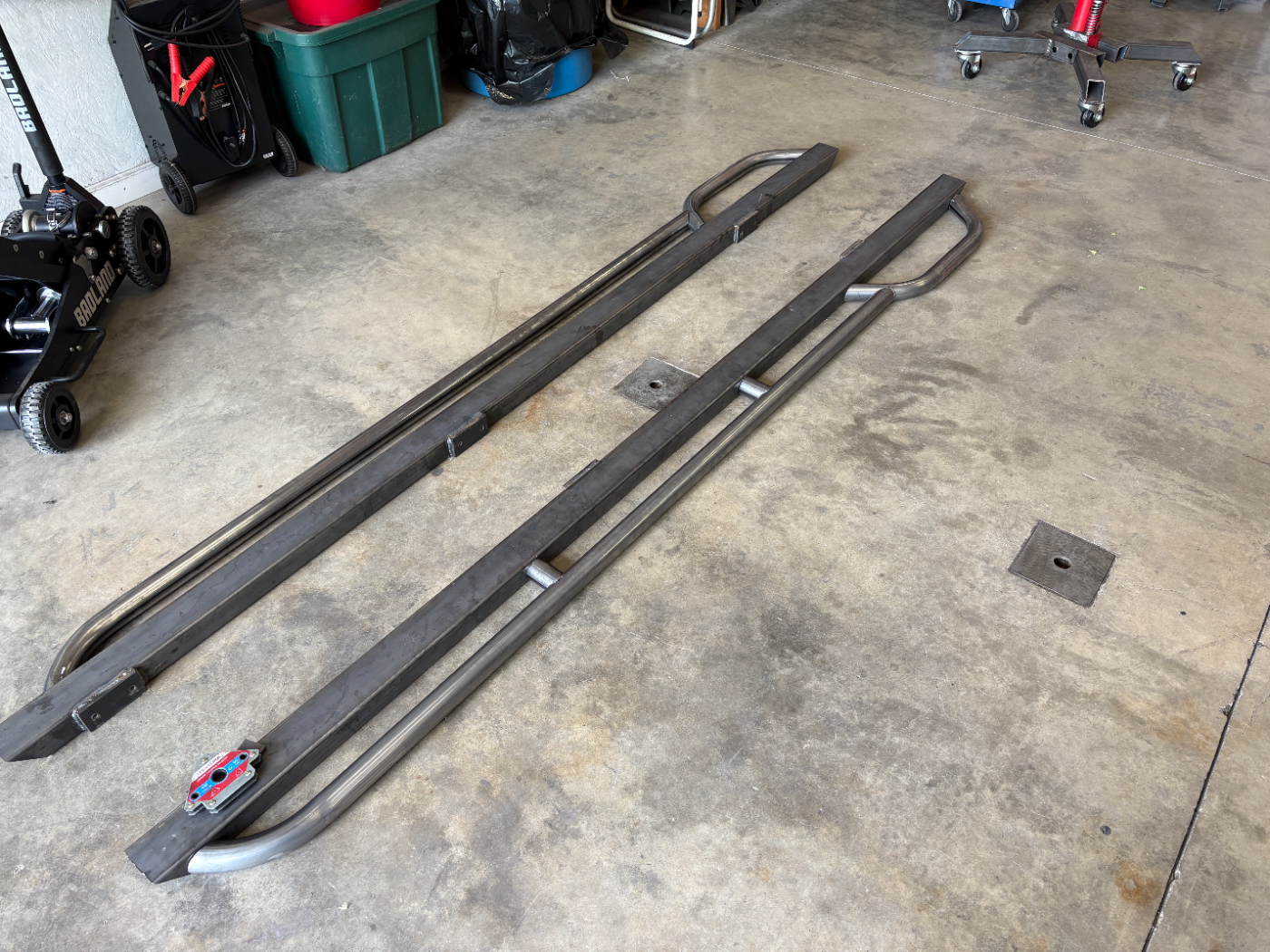

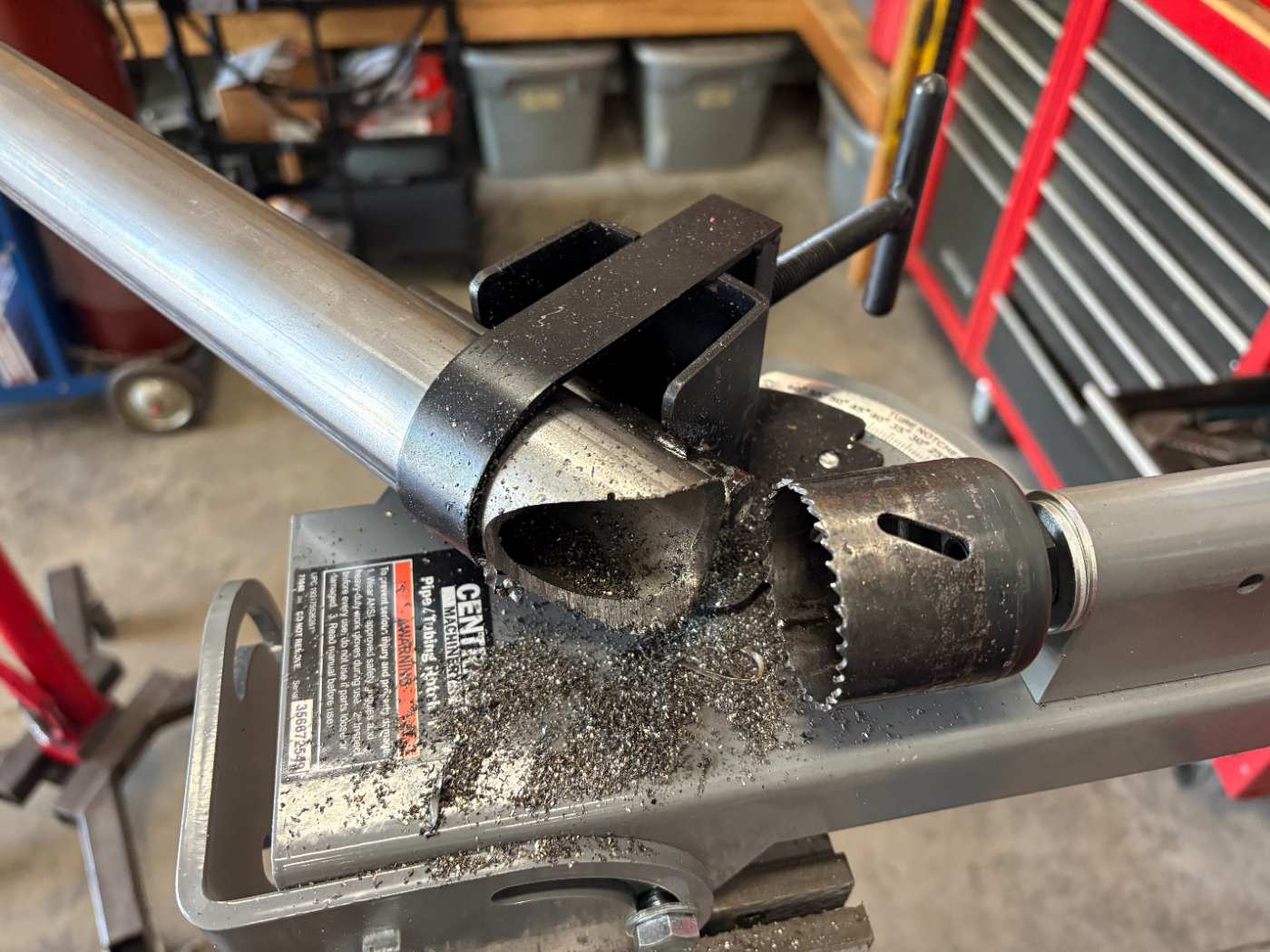

Fairly certain that I could stomach my creation, I carried on, utilizing the Tewb Chomper 1000:

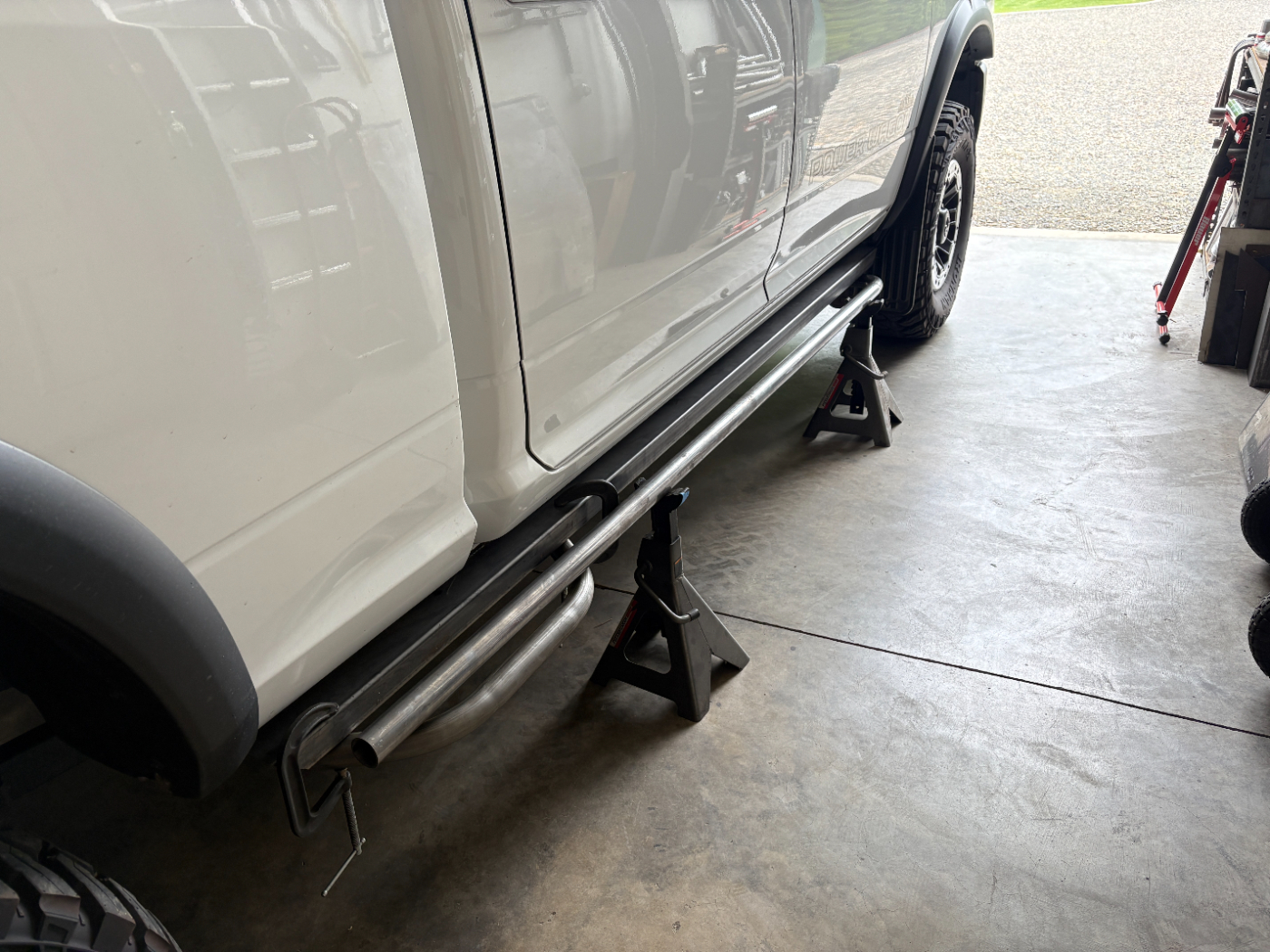

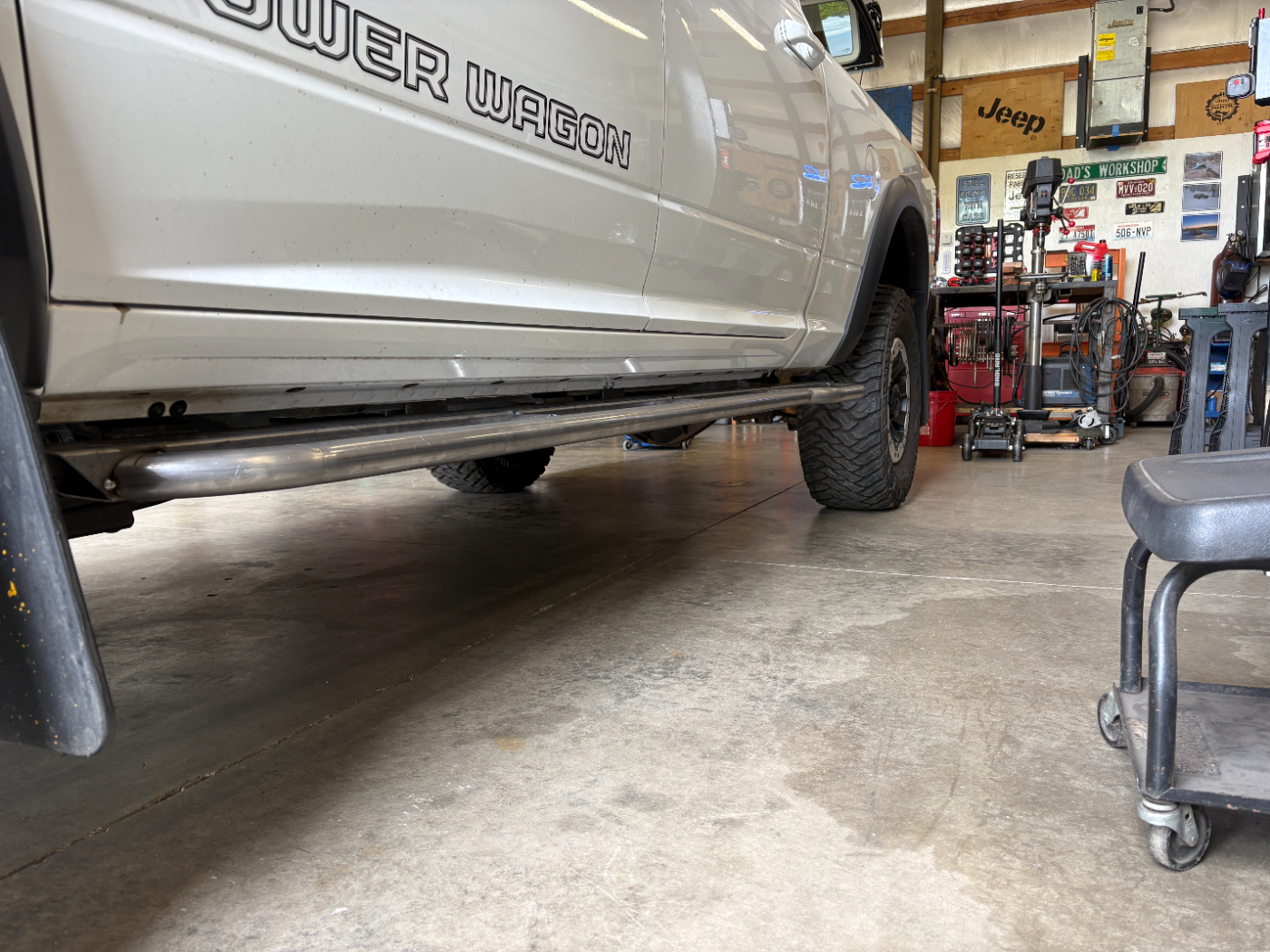

And the final quick mockup prior to booger welding and paint:





[tobyw]

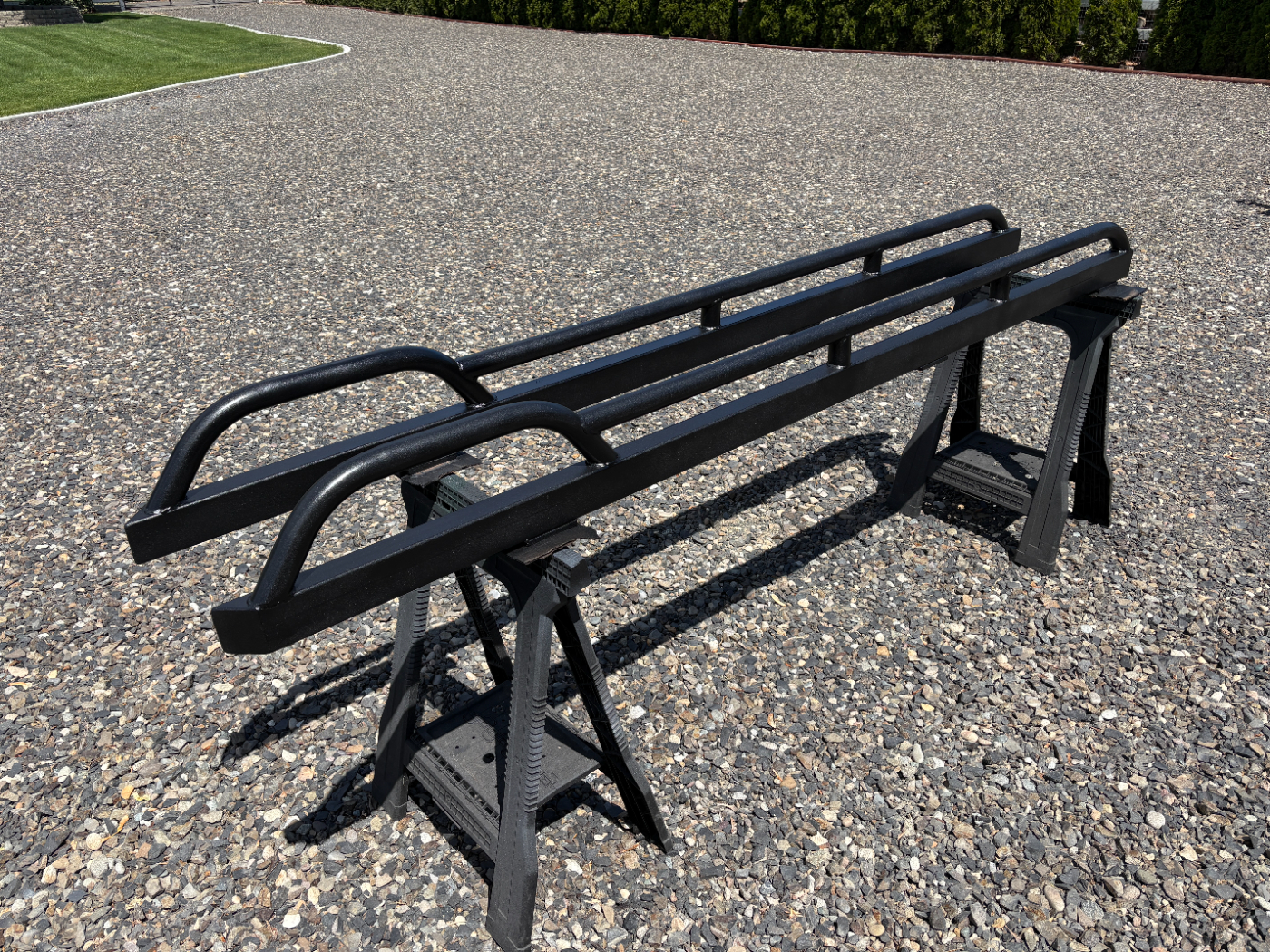

For paint, I went with Rust-Oleum Truck Bed Coating. This stuff is great; it's durable, lays out incredibly well, and has some texture to it making it a great choice for step surfaces:

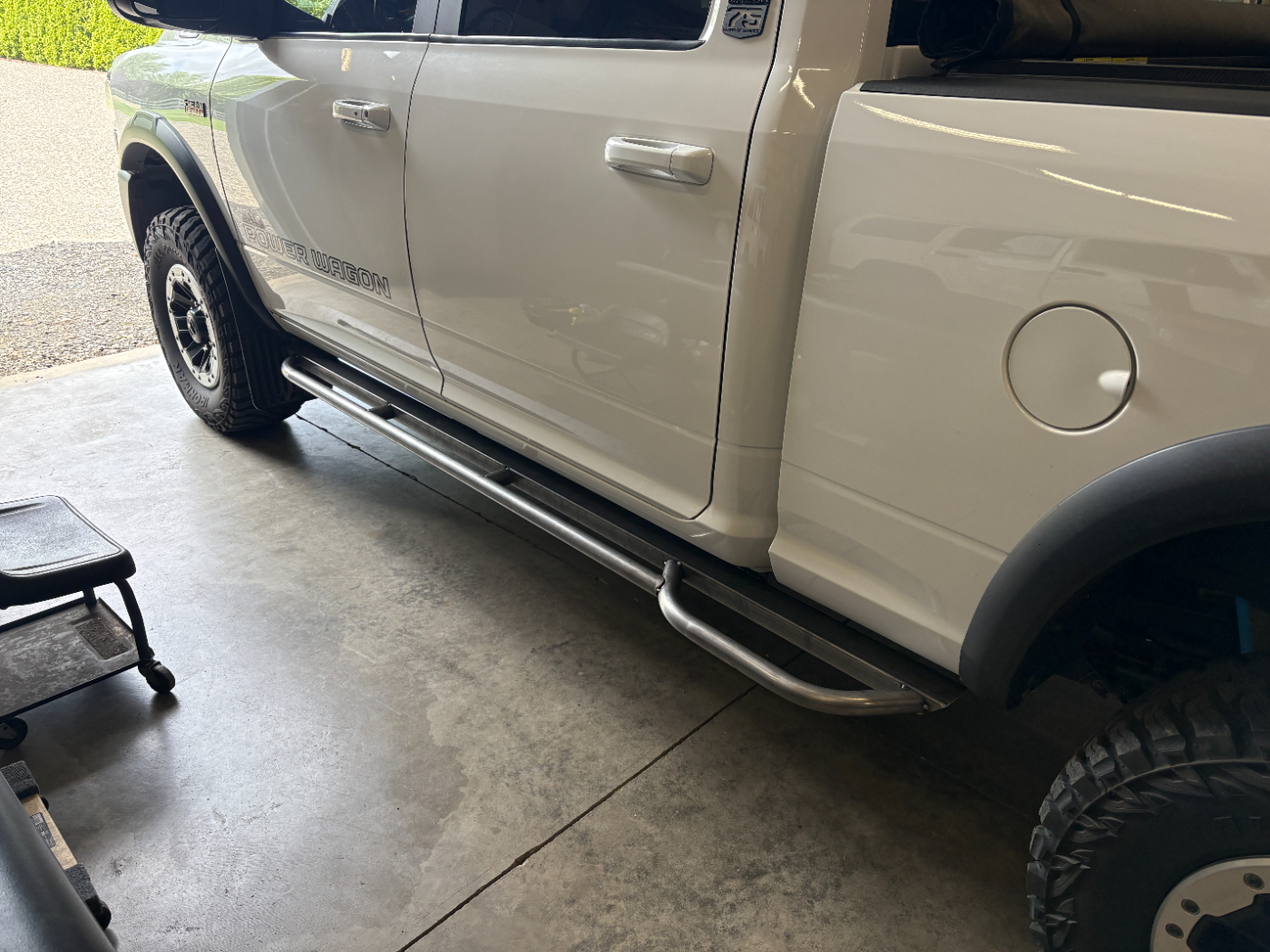

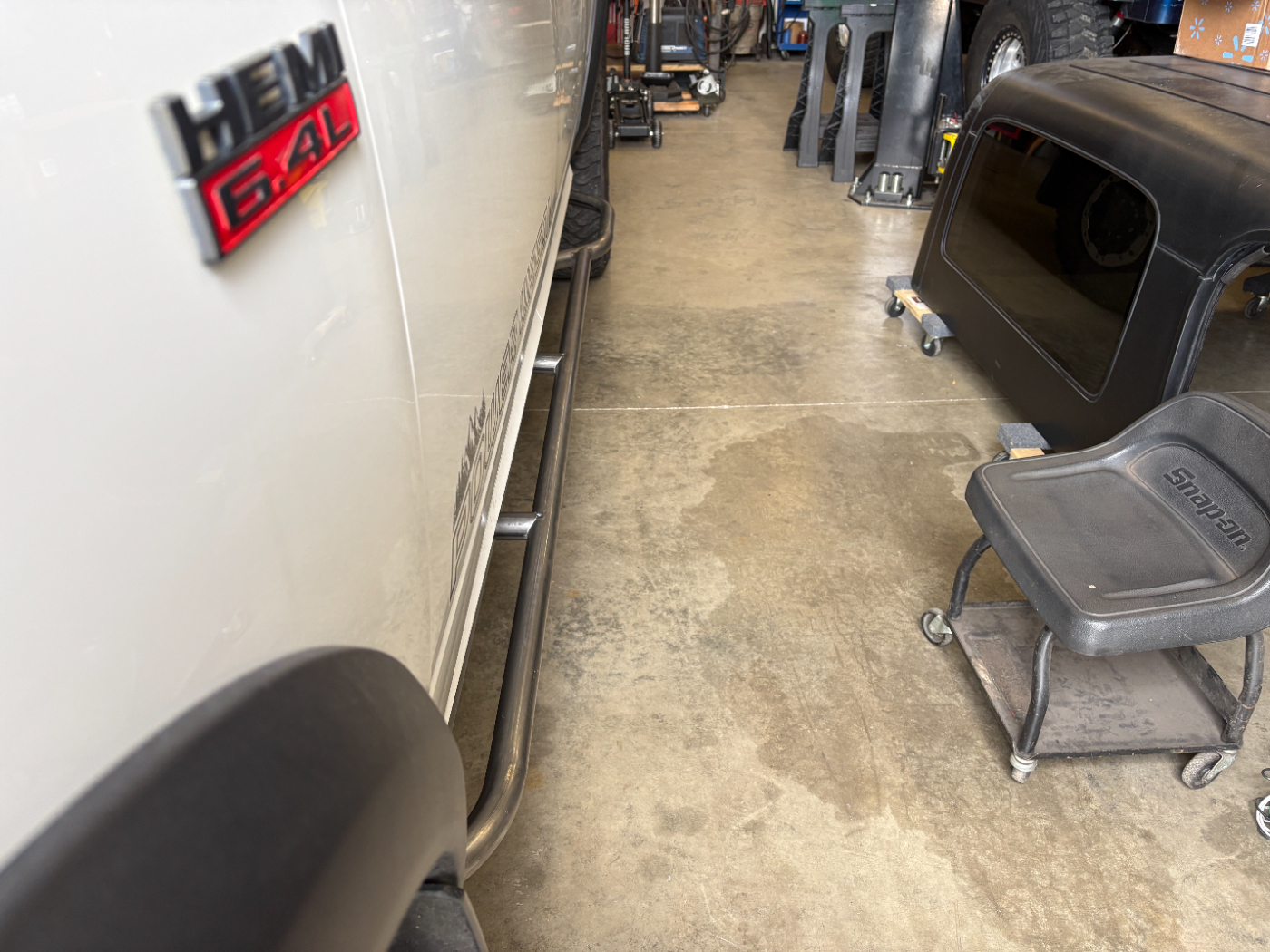

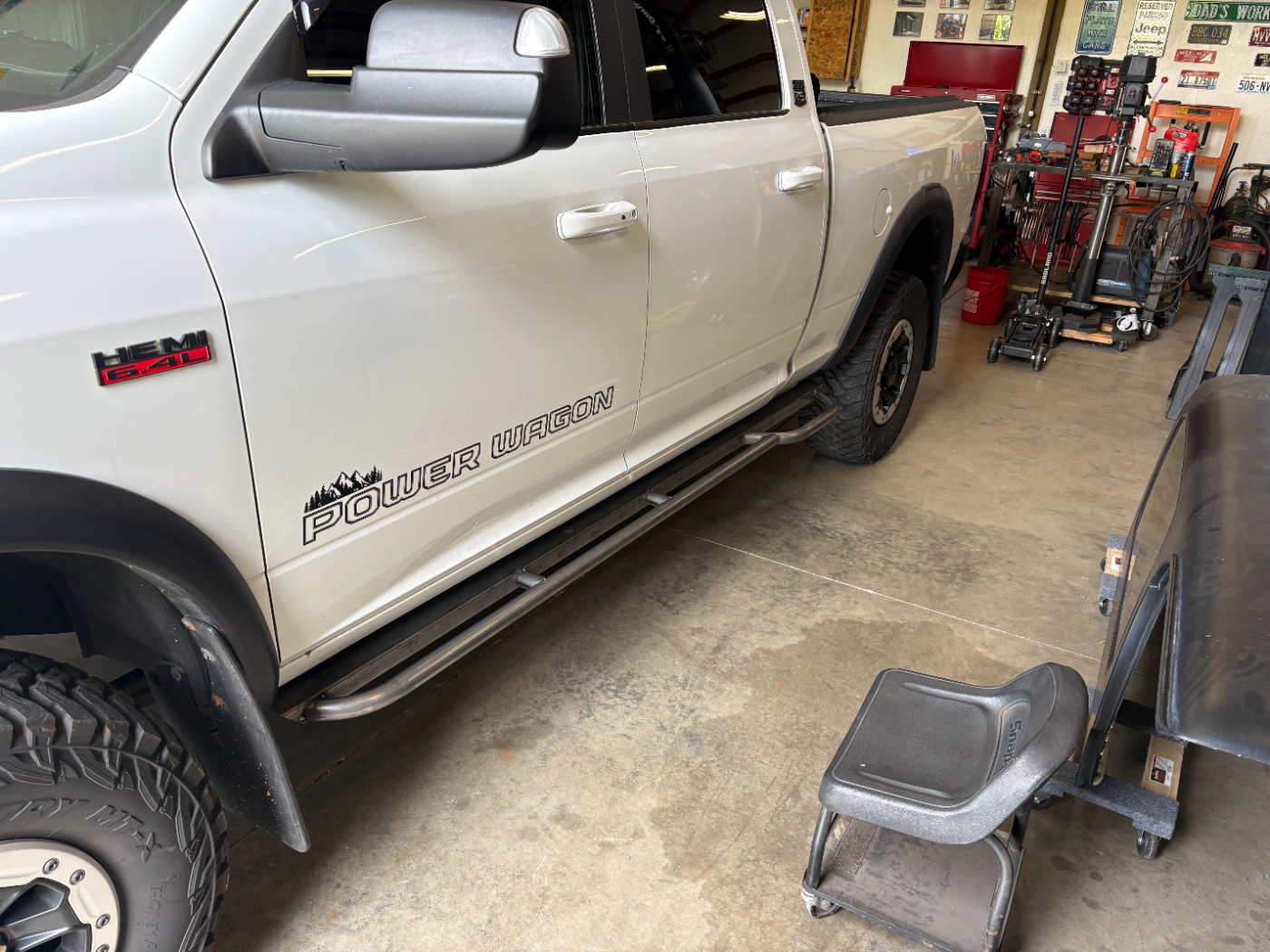

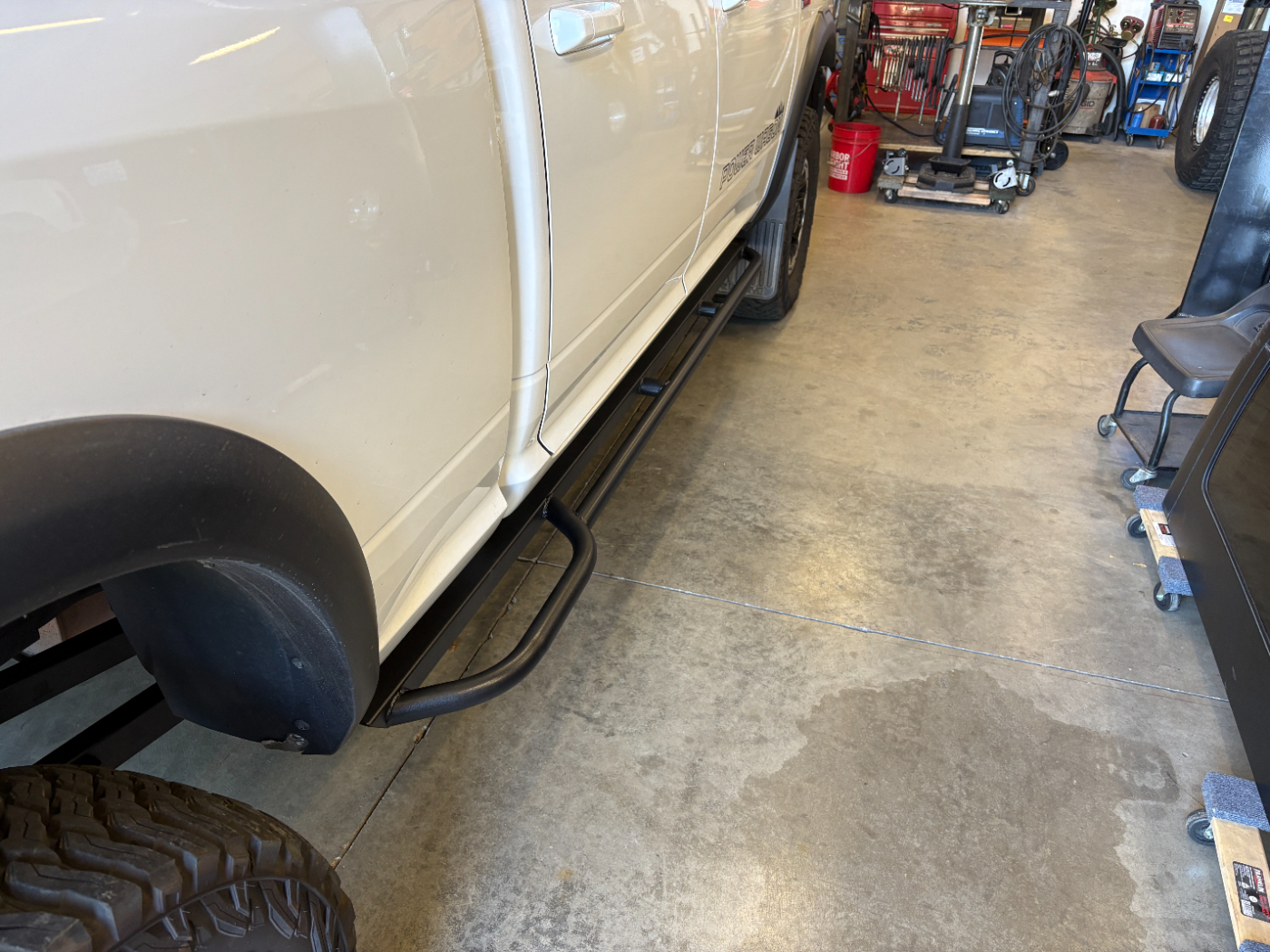

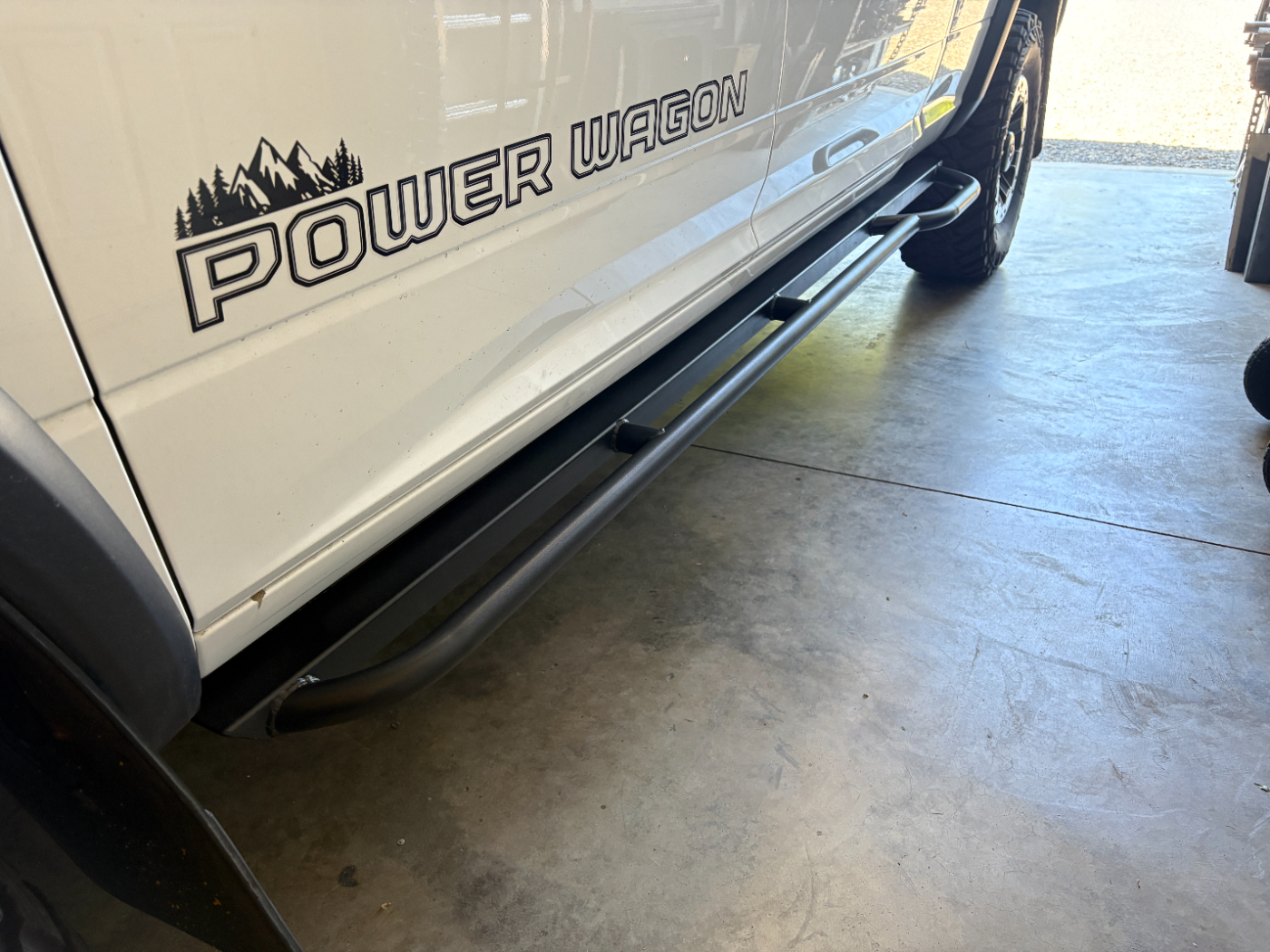

Once it dried, it was onto the final install:

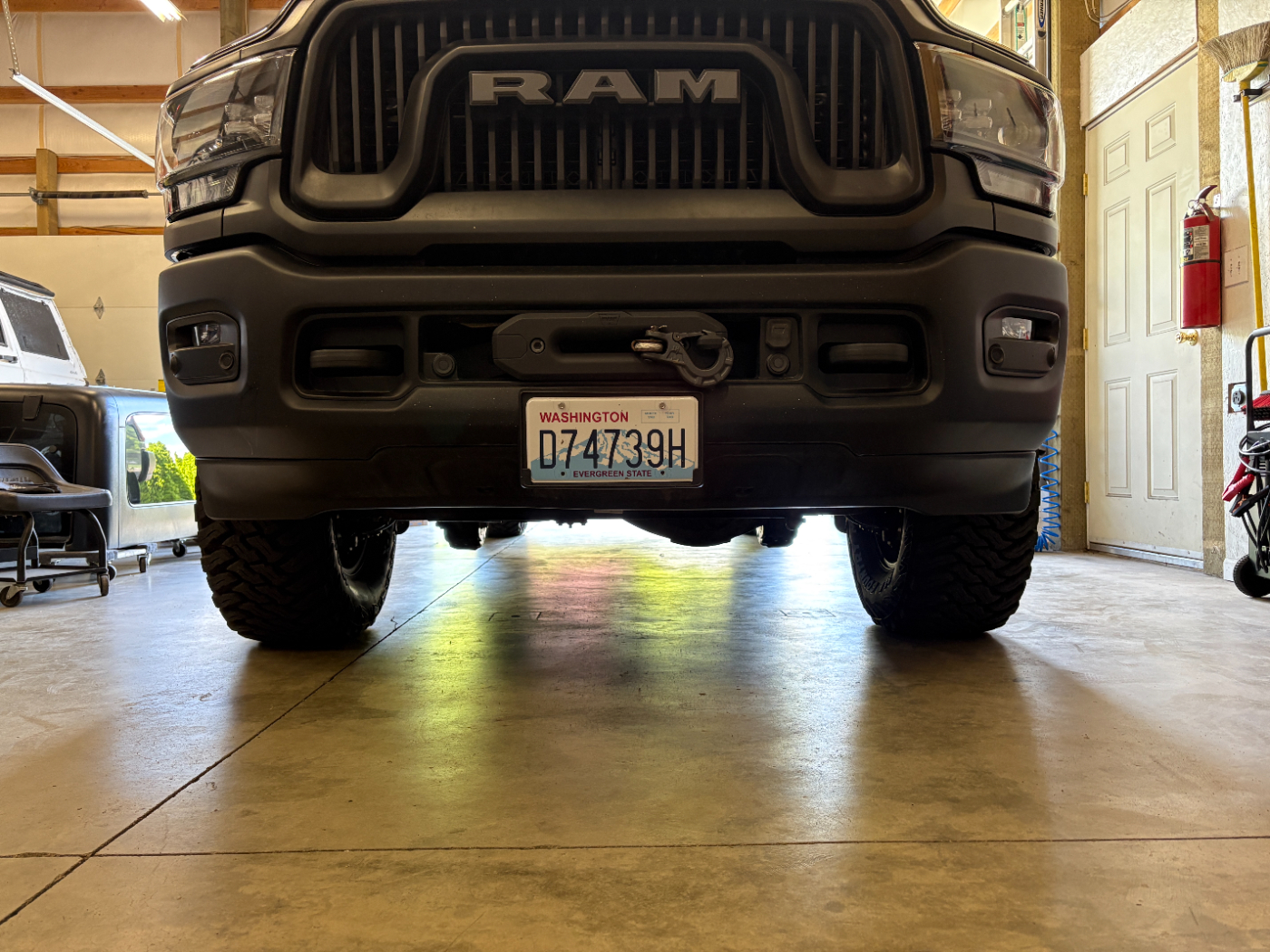

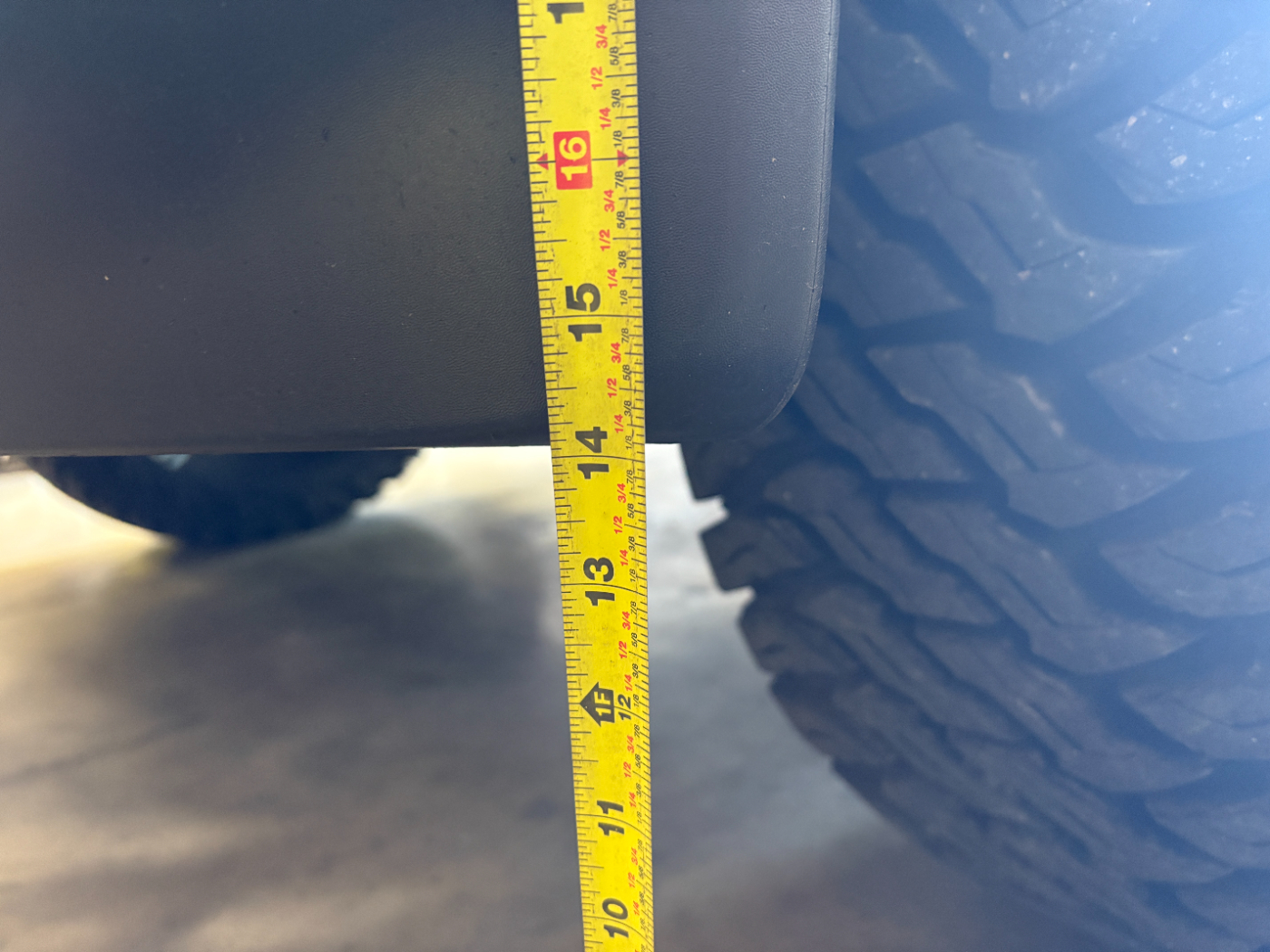

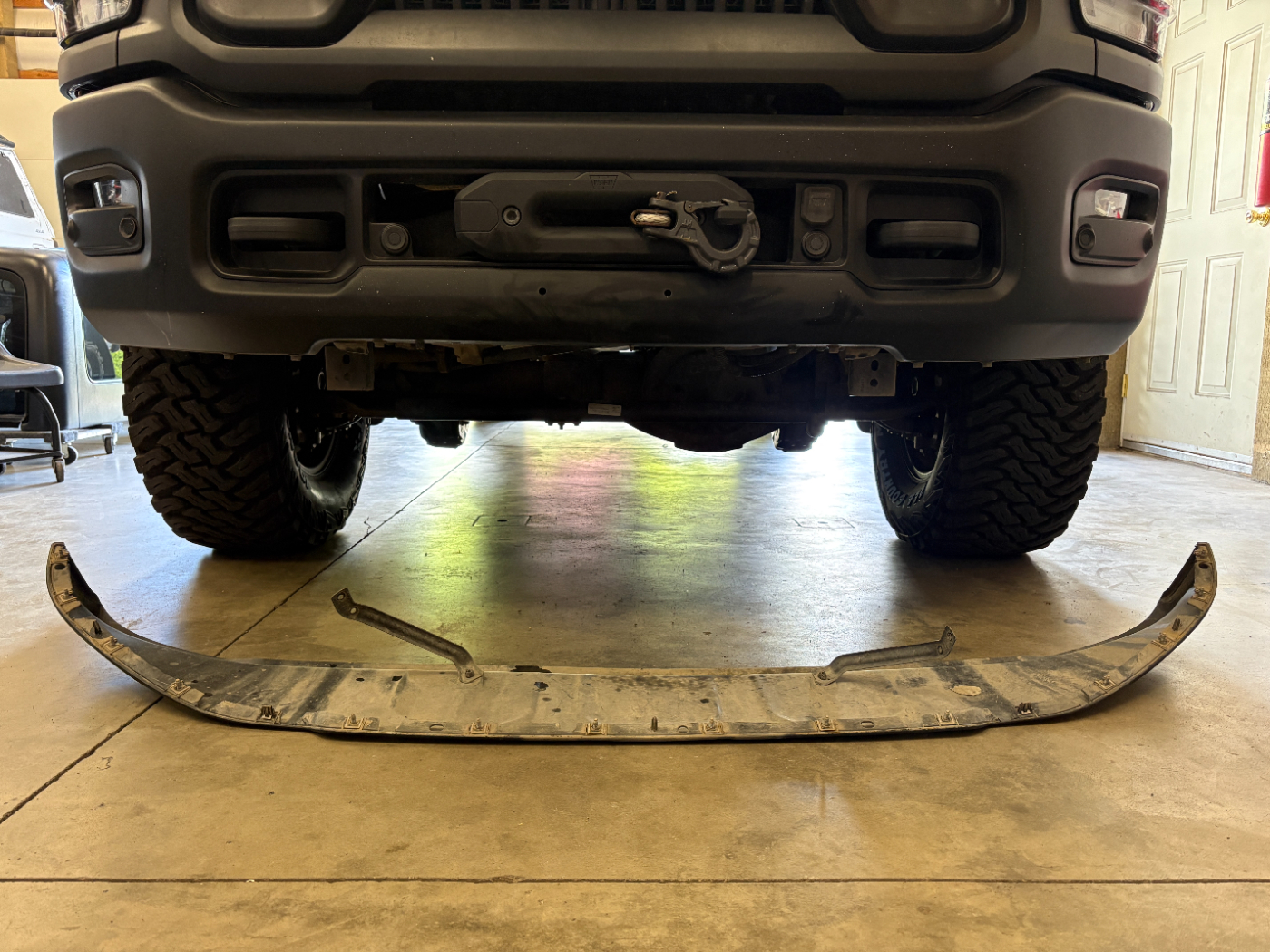

As previously mentioned, this isn't a rock crawler. However, odds are pretty good I'll find the occasion to try and put it somewhere it has no business being To try and mitigate damage to the greatest extent possible, I removed the low-hanging factory air dam, and in doing so gained over 5" of approach clearance :





[Yrjan]

You sir, are a savage! I envy you!

[tobyw]

You sir, are a savage! I envy you!

I appreciate the sentiment, but I can assure you there's nothing here you want

[tobyw]

Since I'm aged, overweight, out of shape, and chronically lazy, there is NO chance that I'm going to routinely hop up into the bed of this pooch when I need to do truck stuff. In an effort to solve the problem, I whipped up a truckbed slider tray thingy from some cheap lumber. I'll go ahead and call this a beta test, as the OSB used for the tray is essentially guaranteed to warp in short order, and given the overall "design" it simply isn't made to support heavy point loads, particularly out on the end, but I have to admit it does work as intended. Even if I did build it

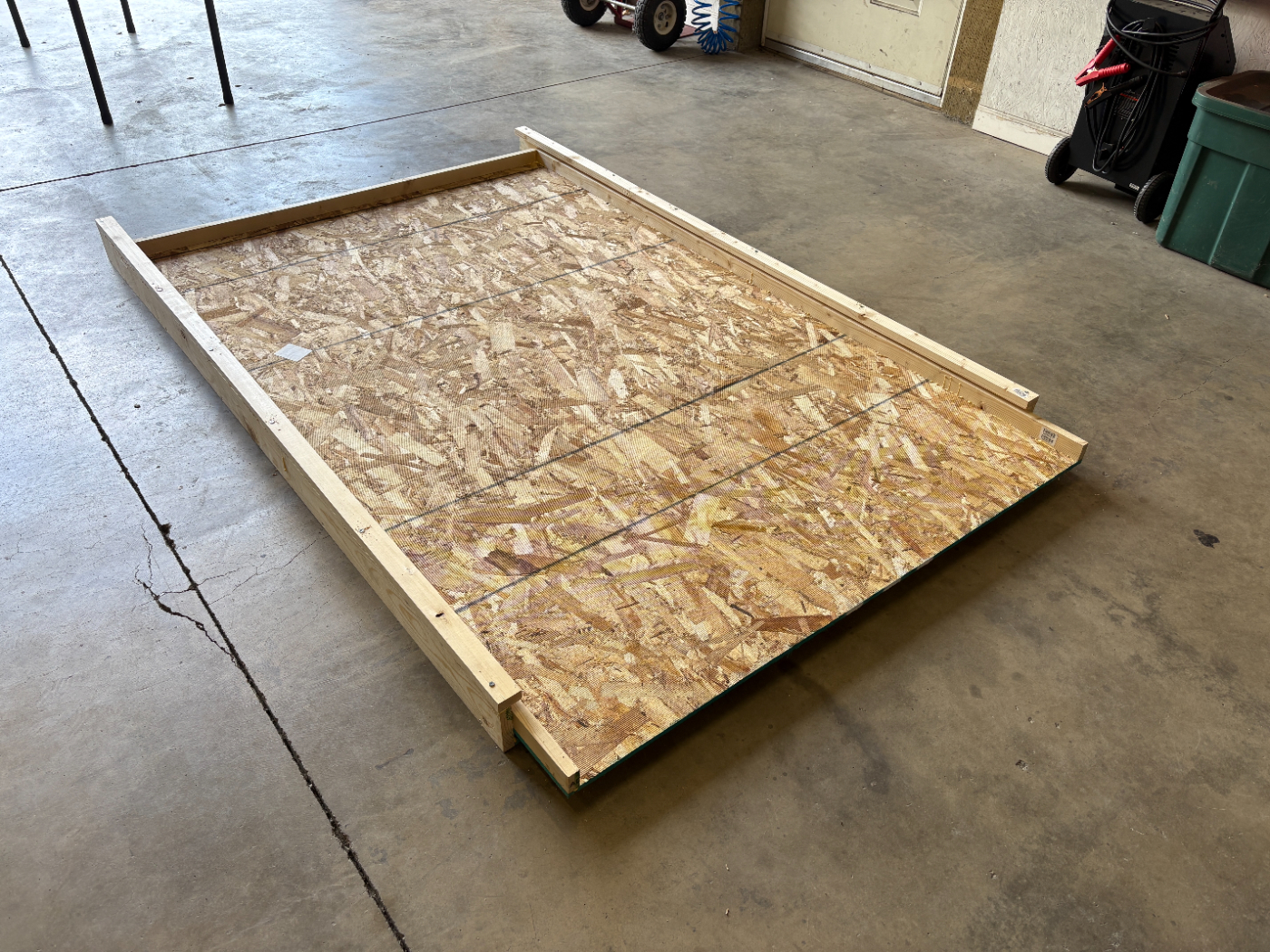

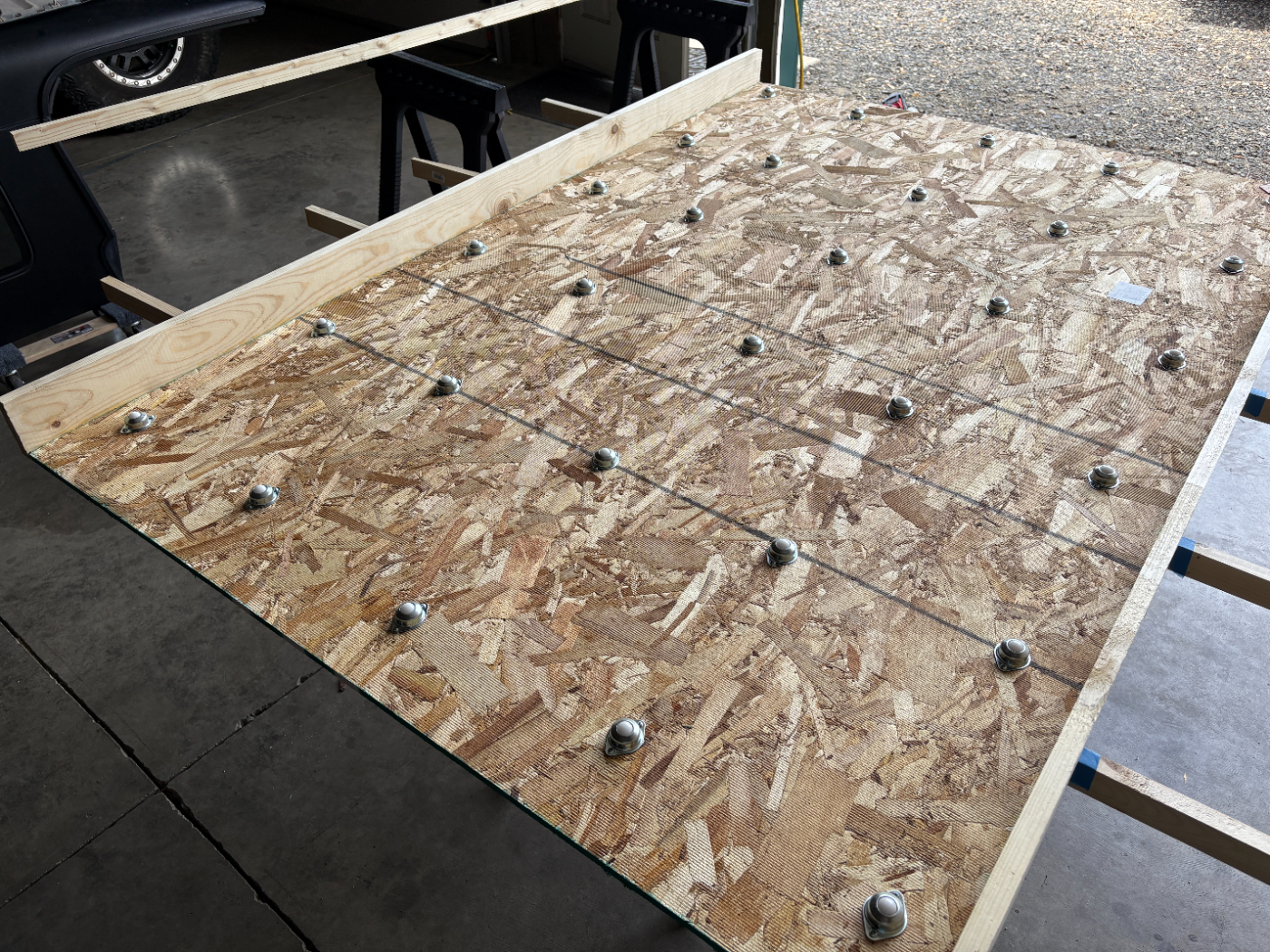

The first order of business was the base. I cut down a 4x8 sheet, added some side rails, and anchored down a grip of roller transfer bearings:

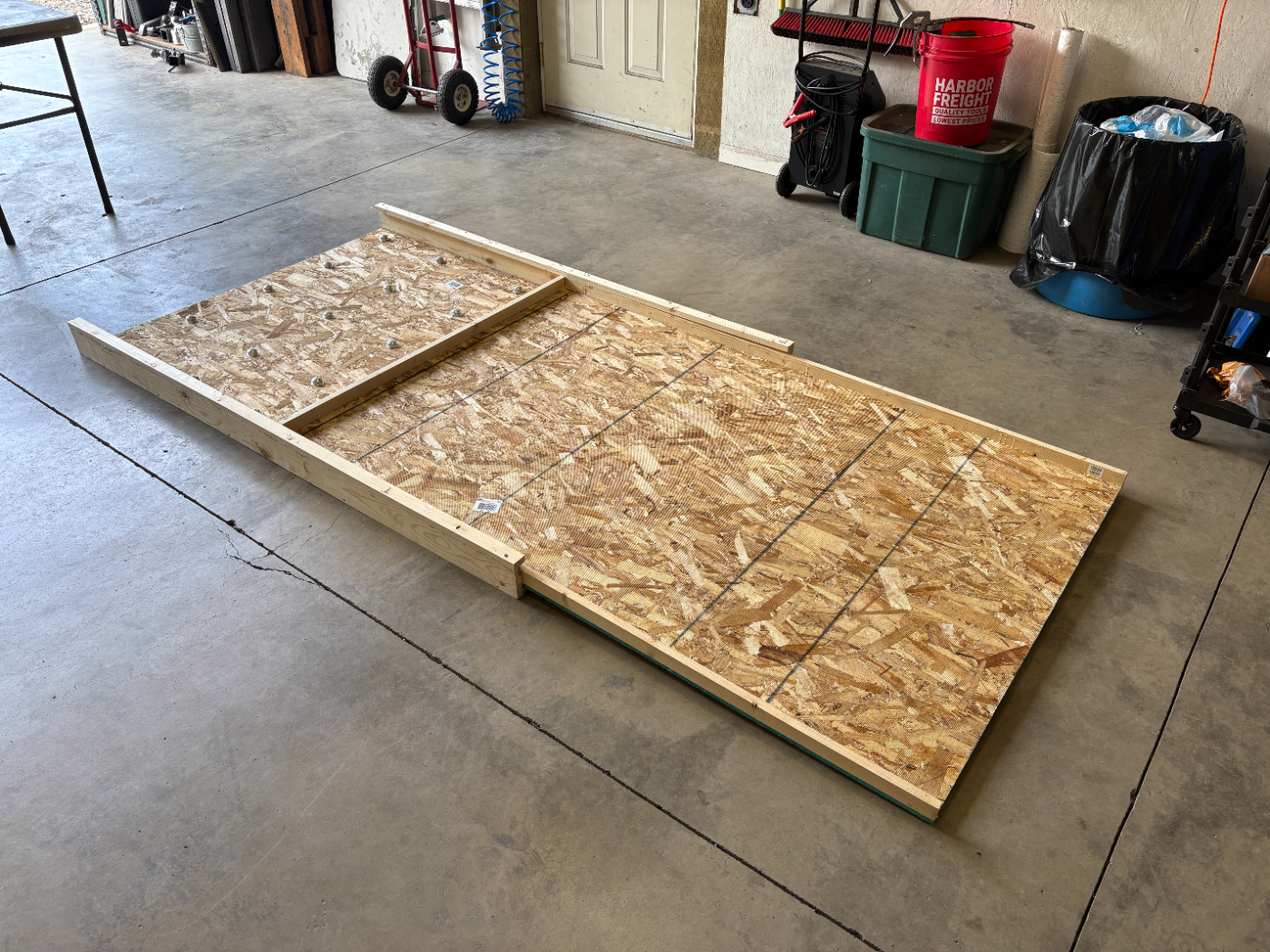

Next was the tray; another 4x8 sheet and perimeter rails. With that laid onto the base, the base side rails were capped to capture the tray:


A quick clearance czek to make sure the slider actually slides:

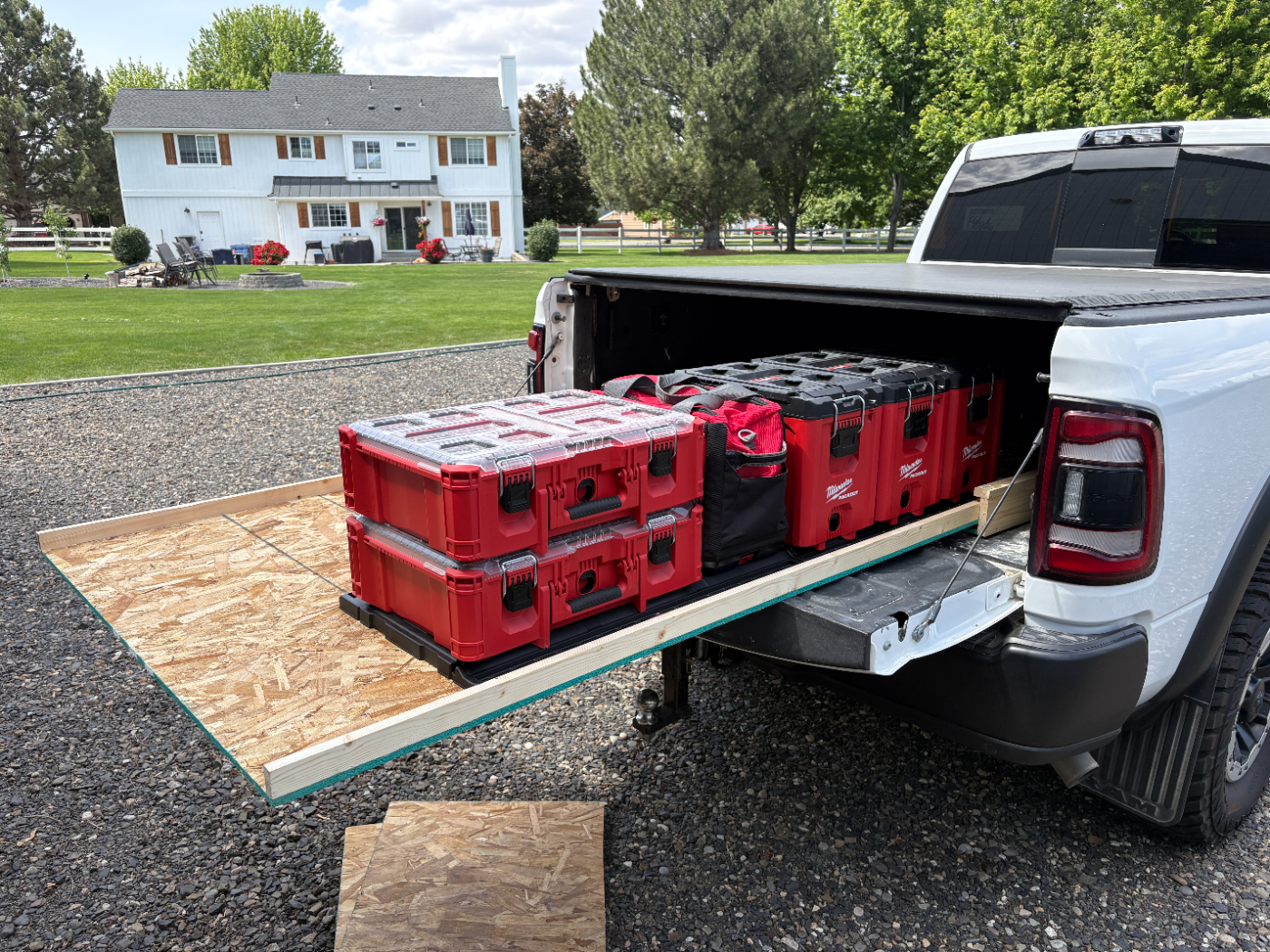

And a quick functional czek to make sure this whole idea was even going to work out:


With the finish line in sight, I laid out some mounting holes and sunk in some rivnuts:

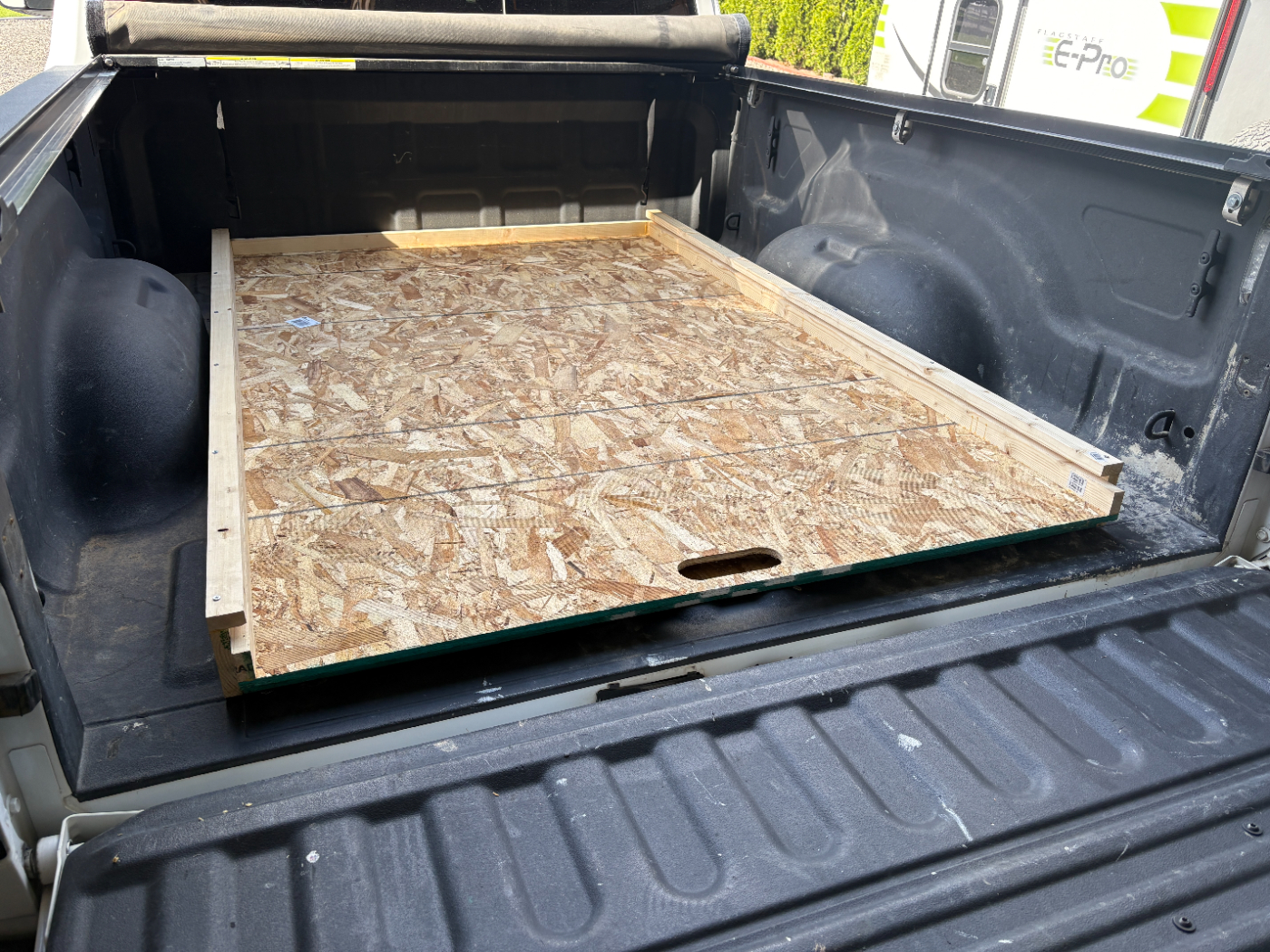

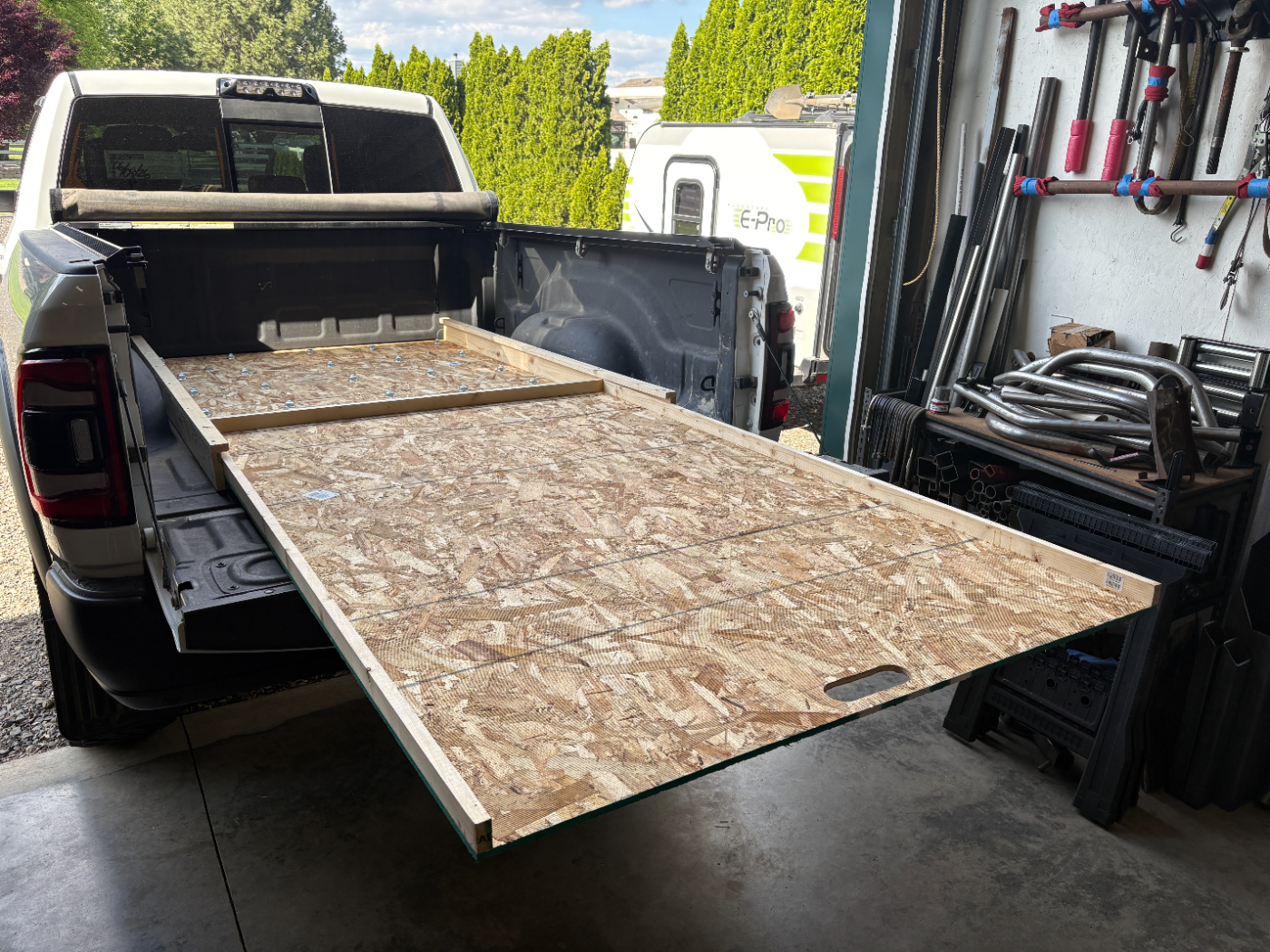

Then I added the tray and cut in a hand hole to make pulling it out easier:



The final touch was a pair of hooks to keep the slider in place until I'm ready to deploy it:
